Enhancing Fleet Management: The PB001 LTE Waterproof GPS Tracker for Semi-Trucks

Choosing the right GPS tracker for semi-trucks is a critical decision for any commercial fleet, especially when factors like durability, performance, and reliability are taken into account. The PB001 LTE Waterproof Commercial Vehicle Tracker offers an efficient and durable solution that’s suitable for a wide range of commercial vehicles, including semi-trucks, work vans, and tractors. Here’s a closer look at the features and specifications of the PB001 LTE Waterproof Commercial Vehicle Tracker.

Device Overview

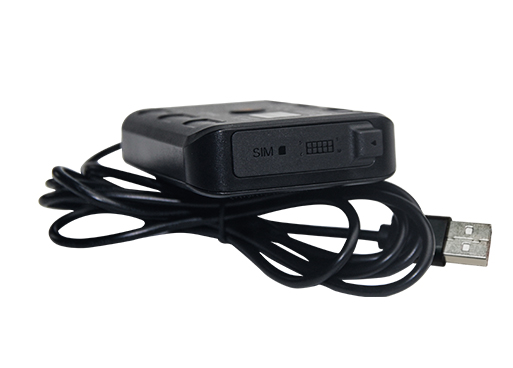

The PB001 LTE Waterproof Commercial Vehicle Tracker, crafted by PDS Technology, is a high-quality GPS tracker for semi-trucks. It boasts an IP67 waterproof rating, ensuring it can operate reliably even in adverse weather conditions. Supporting 4G LTE networks, it provides CAN and RS232 functionalities through a 10PIN expansion interface, utilizes a UBLOX positioning chip, and supports CATM1 networks.


Device Highlights

  • Network Support: It supports the LTE CAT M1 network standard, ensuring stable connections across a broad area.

  • Accurate Positioning: With GPS+BD+QZSS positioning systems and A-GPS support, it offers quick and precise location fixes.

  • Built-in Antennas: Both LTE and GPS antennas are integrated into the device, eliminating the need for external installations.

  • One-Button Functionality: The device includes one-button event definition features, such as an SOS button.

  • Affordable: High-quality tracking is provided at a reasonable price, fitting the budgets of various commercial fleets.

Technical Specifications

  • CPU: ARM 32BIT Cortex-M4 CPU (GD32F303RE) with a maximum frequency of 120MHz.

  • GNSS Module: Supports GPS, GLONASS, BD&QZSS; A-GPS functionality; 2.5 meters accuracy in open areas.

  • LTE Module: Features a built-in Quectel BG95-M3 (CATM), supporting multiple bands for global carriers.

  • G-SENSOR: Includes a built-in 3-axis acceleration sensor.

  • Power Supply: Two power supply options: USB-C 5V or 9-36V power input.

  • Waterproof Rating: IP67.

  • Operating Temperature: -30°C to +70°C, humidity 0% to 90% RH.


  • Real-Time Tracking: Offers real-time location updates for commercial vehicles, crucial for fleet monitoring and efficient operations.

  • LTE Connectivity: Equipped with LTE connectivity for real-time tracking information, aiding in better route planning and timely delivery for logistics companies.

  • Waterproof Design: Provides accurate tracking information in all weather conditions.

  • Vehicle Behavior Monitoring: Monitors various vehicle metrics such as speed, fuel consumption, and engine status.

  • Safety Alerts: Sends alerts if the vehicle leaves a designated area or detects unusual behavior, like speeding or sudden braking.

  • Geofencing: Allows businesses to set virtual boundaries for vehicles, sending alerts if these boundaries are crossed.

  • Long Battery Life: Features a long battery life, reducing the need for frequent charging.

  • Easy Installation: Designed for easy installation, enabling businesses to quickly equip their fleets with trackers.

  • User-Friendly Interface: Comes with a user-friendly interface for easy fleet management and monitoring.

  • Rugged Construction: Delivers reliable performance even in harsh conditions.

Battery Charging Frequency The battery charging frequency of the PB001 LTE Commercial Truck GPS Tracker depends on various factors, including usage frequency, location update frequency, network connection strength, weather conditions, device settings, and device age. Although it’s challenging to provide an exact charging frequency, many GPS trackers for semi-trucks typically require charging at least once a week under normal usage conditions. The PB001 LTE Waterproof Commercial Vehicle Tracker is designed with a long-life battery, minimizing the need for frequent charging.

Data Access Accessing data collected by the PB001 LTE Waterproof Commercial Vehicle Tracker is straightforward. First, install the GPS tracker for semi-trucks in the vehicle, then transmit data to a central server via LTE connection. Log into the server using a computer or mobile device to view real-time locations, historical data, and generate reports on various metrics. The system can also send alerts based on set parameters, such as the vehicle leaving a designated area or speeding.

With the PB001 LTE Waterproof Commercial Vehicle Tracker, businesses can enhance the efficiency and safety of their fleet management, ensuring smooth operations and compliance.
