T802 Vehicle Mount Computer (for Construction)

T802 Vehicle Mount Computer (for Construction)

T802 has built in light sensor which could adjust brightness automatically according to different strength of sunlight. T802 vehicle mount computer supports wide temperature operation of the whole machine (-30~50 °C/-22~122 °F).


  • T802 Vehicle Mount Computer
  • vehicle mount computer3
  • vehicle mount computer4
  • vehicle mount computer1
  • vehicle mount computer2
  • vehicle mount computer6
  • vehicle mount computer5
  • T802 Vehicle Mount Computer
  • vehicle mount computer3
  • vehicle mount computer4
  • vehicle mount computer1
  • vehicle mount computer2
  • vehicle mount computer6
  • vehicle mount computer5

Through the professional industrial design, wide operating temperature range and extremely powerful mechanical design, this OEM mobile data terminal supports the execution of tasks in harsh working environments.


Highlights of T802 Vehicle Mount Computer (for Construction)


  • 5m drop test for reliability test (MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05)

  • Low-profile and diverse Wi-Fi antennas are specially designed for logistics, matching the environmental conditions. bug fixes, system patches, and additional features.

  • Support ODM/OEM service to help customers customized all different needs


Specification of T802 Vehicle Mount Computer (for Construction)


Product Appearance

IP rating

IP65

Screen and touch

Full lamination process, multi-touch
8.0",1280*800, brightness>=450 CD/M2
IPS screen, The viewing angle is greater than 170 degrees

System

CPU

64-bit processor, 4-core Cortex A53@1.5GHZ

Memory

2GB

Storage

16GB

Operation system

Android 10

Wireless communication

WIFI

2.4G WiFi, IEEE802.11 b/g/n

BT

BT4.0 BLE

4G LTE

Module: Quectel EC200U CAT1 (for European countries)
LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

GSM: B2/B3/B5/B8

High precision positioning

support RTK module:

Unicore UM482/UM980

or U-blox F9p

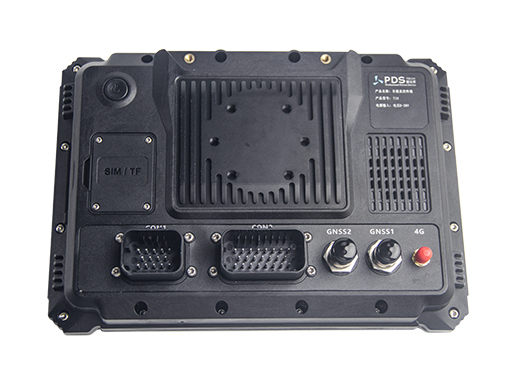

Port





Port

Power button *1

USBC port * 1  (for software debugging)

USB Host A port *1

TF Card *1

Nano SIMCard *1

TNC antenna port *2 (For external high-precision GNSS positioning antenna)

SMA antenna port*1 (For external LTE communication antenna)

6PIN connector*1 ( For Handheld intercom function)

23PIN connector*1 (*Function extension interface)

Environment specification

Environment specification

Power: ISO7637

Vibration standard(working): MIL-STD-810

Impact standard(working): ISO16750

Humidity 95%, non-condensing

Working temperature: -20°C ~+70°C
