T7(7 inch)Vehicle Mount Computer

T7(7 inch)Vehicle Mount Computer

T7 vehicle mount computer is a sturdy and durable in-vehicle computer, which is suitable for various vehicles to work in complex and harsh environments.


  • t7 7 inch vehicle mount computer 1
  • t7 7 inch vehicle mount computer 2
  • t7 7 inch vehicle mount computer 1
  • t7 7 inch vehicle mount computer 2

T7 supports multiple definable buttons on the front, and can also support high-precision positioning. This vehicle mount terminal is suitable for commercial vehicles such as agricultural tractors, excavators, loading and transport trucks, engineering tower cranes, self-driving mining trucks, large trucks, buses, and taxi-hailing vehicles.





Video of T7(7 inch)Vehicle Mount Computer



Highlights of T7 (7 inch) Vehicle Mount Computer

1) 64-bit processor, quad-core Cortex A53@1.5GHZ, passed AEC-Q100

2) Support ANDROID 10 or LINUX4.9+QT5 system

3) Full lamination process, multi-touch, 7", 1024*600, brightness>=400 CD/M2

IPS screen, the viewing angle is greater than 170 degrees

4) This OEM mobile data terminal support RTK high-precision centi-meter-level positioning function

5) Up to support 4-channel 720P cameras can be previewed at the same time

6) Up to support 1 CAN networks, and the CAN rate can support 500kbps/250kbps

7) Support 9-36V power input, support ISO7637 vehicle power supply standard,

8) IP65 protection grade to meet the needs of complex and harsh working environment


Parameter of T7 (7 inch) Vehicle Mount Computer

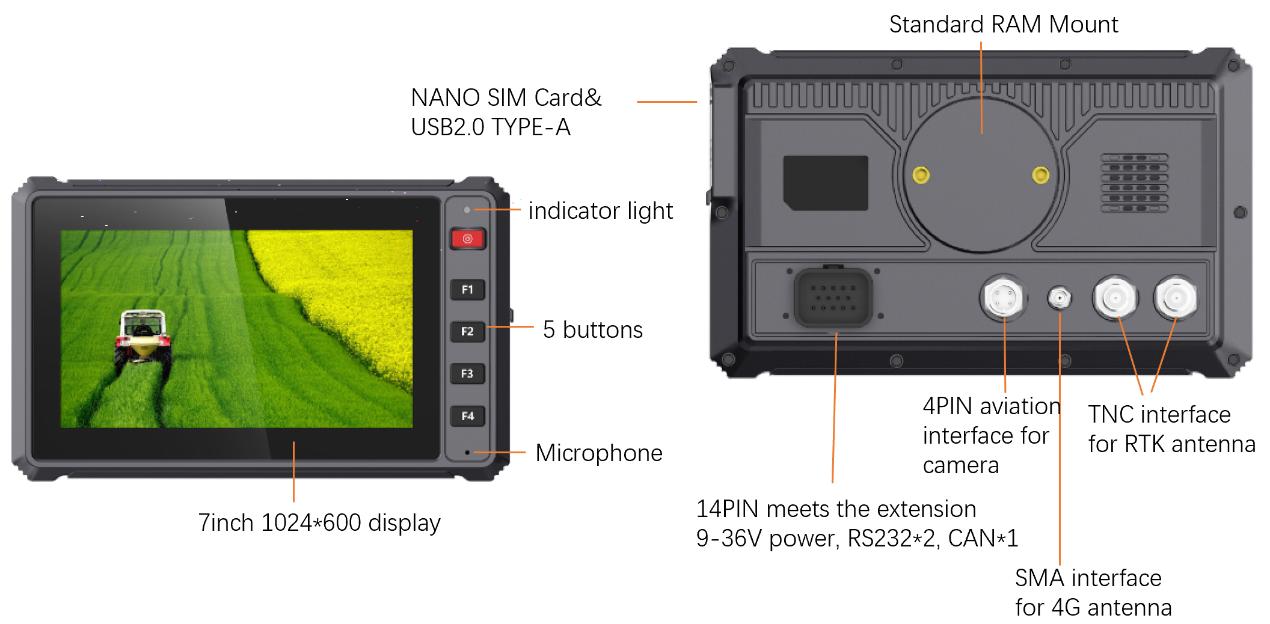

Product Appearance

IP rating

IP65

Screen and touch

Full lamination process, multi-touch
7.0",1024*600, brightness>=400 CD/M2
IPS screen,The viewing angle is greater than 170 degrees

System

CPU

64-bit processor, quad-core Cortex A53@1.5GHZ, passed AEC-Q100

Memory

2GB

Storage

16GB

Operation system

Android 10 or Linux4.9+QT5

Wireless communication

WIFI

2.4G WiFi, IEEE802.11 b/g/n

BT

BT4.0 BLE

4G LTE

Module:Quectel EC200U CAT1 (for European countries)
LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

GSM: B2/B3/B5/B8

High precision positioning

support RTK module:

UNICORECOMM UM982 or U-BLOX F9p

Port





Port

Power button *5

Indicator light *1

Microphone *1

USB Host A port *1

Nano SIMCard slot*1

TNC antenna port *2 (For external RTK antenna)

SMA antenna port*1 (For external LTE communication antenna)

14PIN connector*1 (*Function extension interface)

4PIN connector*1 (*for AHD camera)

Environment specification

Environment specification

Power :ISO7637

Vibration standard(working): MIL-STD-810

Impact standard(working): ISO16750

Humidity 95%, non-condensing

Working temperature: -20°C ~+70°C
