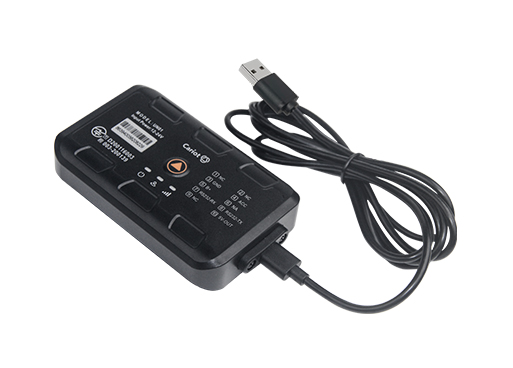

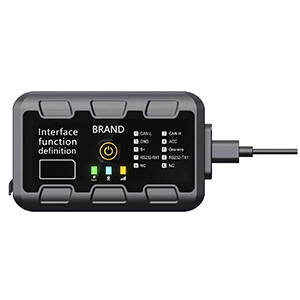

For fleet management vehicles, this small 4G battery-powered GPS vehicle tracker can help to obtain a lot of vehicle data information to help the fleet manage effectively. We also provide a PB001 semi truck tracker at competitive prices, which improves management and operation efficiency.
Integrated LTE-M communication module, high-precision Beidou dual-mode GPS module.
Compatible with 9-36V power systems for passenger cars and commercial vehicles, our battery-powered vehicle tracker can be installed on buses, taxis, trucks, personal cars, business cars, etc.
This vehicle inventory tracking system is able to monitor vehicle location, detect driving behavior, voice communication, and remote control. As a typical commercial vehicle tracking device, it can extend various peripherals with I/O interfaces, such as temperature sensors, door detection sensors cameras, etc.
Item | Description | |||
Indicator | 1: Power indicator: green 2: Positioning status indicator: blue 3: CAT M1 status indicator: orange | |||
CPU | ARM 32BIT Cortex-M4 CPU ( GD32F303RE ) , 120Mhz Max frequency, | |||
GNSS positioning module | GNSS module : Support GPS, GLONASS, BD&QZSS; Support A-GPS function CEP50: 2.5 meters (open field) Capture Sensitivity: -148 dBm Tracking Sensitivity: -162 dBm Cold start: 32S typical(open sky) Warm start: 1S | |||
LTE module | Built-in Quectel BG95-M3 (CATM) Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/ B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/ B25/B26/B28/B66/B71/B85 EGPRS: 850/900/1800/1900MH Carrier Support: Vodafone(global) Deutsche Telekom(Europe) AT&T/Verizon/T-Mobile/Sprint (North America) NTT DOCOMO*SoftBank/KDDI(Japen) Module certification: SRRC/NAL/CCC(China) CE(Europe) FCC/PTCRB(North America) JATE/TELEC(Japen) | |||
G-SENSOR | builtin 3-axis acceleration sensor | |||
Button | 1button (*example: It can be defined as SOS button) | |||
Power | 2 power supply methods: 1. USB-C 5V power supply 2. 9-36v power input (*through extension 10-PIN interface) | |||
Interface | 1xUSB-C type interface (for power supply) 1x10-PIN extended function interface 1xNANO SIM card slot | |||
Waterproof level | IP67 | |||
Installation method | 3M glue installation | |||
Working temperature | -30℃~+70℃ Humility:0%~90%RH |
