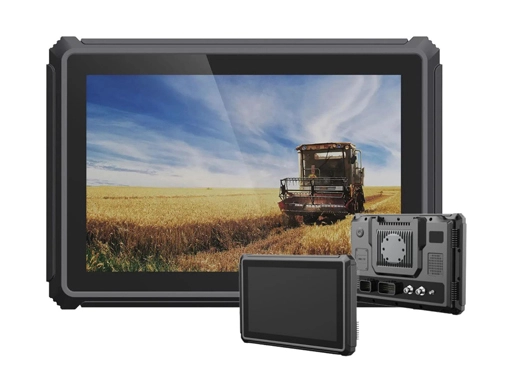

T101 Vehicle Mount Computer (for Agriculture)

T101 Vehicle Mount Computer (for Agriculture)

T101 is a 10.1-inch IP65-grade vehicle mount computer. The T101 vehicle mount terminal uses a car-grade 64-bit processor, which can support UNICORE's UM482/UM980 or UBLOX's F9P RTK module to realize automatic driving of agricultural vehicles

  • T101 Vehicle Mount Computer
  • vehicle mount computer2
  • vehicle mount computer1
  • vehicle mount computer6
  • vehicle mount computer5
  • vehicle mount computer4
  • vehicle mount computer3
  • T101 Vehicle Mount Computer
  • vehicle mount computer2
  • vehicle mount computer1
  • vehicle mount computer6
  • vehicle mount computer5
  • vehicle mount computer4
  • vehicle mount computer3

Highlights of T101 Vehicle Mount Computer (for Agriculture)


  • Highlight display makes it easily visible under sunshine

  • Android and Linux operate system, easy for development and use

  • 9-36v wide voltage power input allows various type of agriculture vehicles

  • ODM/Customized requirements assessment and quotation

  • This type of OEM mobile data terminal support ANDROID 10 system and Linux QT5


Specification of T101 Vehicle Mount Computer (for Agriculture)


Product Appearance

IP rating

IP65

Screen and touch

Full lamination process, multi-touch
10.1",1280*800, brightness>=500 CD/M2
IPS screen,The viewing angle is greater than 170 degrees

System

CPU

64-bit processor, 4-core Cortex A53@1.5GHZ

Memory

2GB

Storage

16GB

Operation system

Android 10

Wireless communication

WIFI

2.4G WiFi, IEEE802.11 b/g/n

BT

BT4.0 BLE

4G LTE

Module:Quectel EC200U CAT1 (for European countries)
LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

GSM: B2/B3/B5/B8

High precision positioning

support RTK module:

Unicore UM482/UM980

or U-blox F9p

Port





Port

Power button *1

USBC port * 1  (for software debugging)

USB Host A port *1

TF Card *1

Nano SIMCard *1

TNC antenna port *2 (For external high-precision GNSS positioning antenna)

SMA antenna port*1 (For external LTE communication antenna)

14PIN connector*1 (*Function extension interface)

23PIN connector*1 (*Function extension interface)

Environment specification

Environment specification

Power :ISO7637

Vibration standard(working): MIL-STD-810

Impact standard(working): ISO16750

Humidity 95%, non-condensing

Working temperature: -20°C ~+70°C
