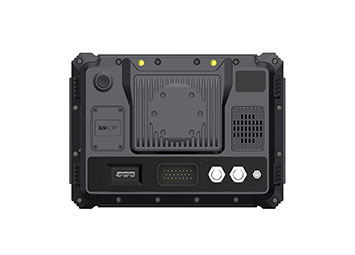

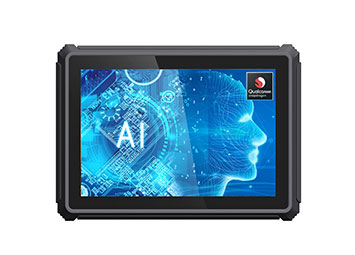

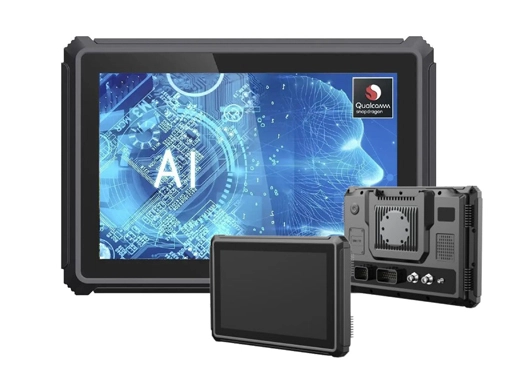

T8pro Vehicle Mount Computer (Qualcomm Chipset)

T8pro Vehicle Mount Computer (Qualcomm Chipset)

T8pro vehicle mount computer is a sturdy and durable vehicle-mount computer with high performance, which is suitable for various vehicles to work in complex and harsh environments.


  • T8pro Vehicle Mount Computer
  • pds t8pro vehicle mount compute
  • t8pro vehicle mount computer qualcomm chipset
  • T8pro Vehicle Mount Computer
  • pds t8pro vehicle mount compute
  • t8pro vehicle mount computer qualcomm chipset


T8pro vehicle mount computer uses the Qualcomm QCM6125 processor.  It is an 8-core 64-bit processor with a maximum frequency of 2.0ghz, and has powerful CPU and GPU capabilities. T8pro can provide 4-channel CAMERA simultaneous video recording function to generate 4 video files. If your application scenario requires high-performance computing and 3D processing, T8PRO is the best choice.


T8pro Vehicle Mount Computer



Highlights of T8pro (8 inch) Vehicle Mount Computer

1)Qualcomm high-performance 64-bit processor, QCM6125, up to 2.0Ghz

2)Support latest android system, ANDROID 13

3)Max to support 8GB+128GB memory

4)Full lamination process, multi-touch, 8", 1280*800, brightness>=500 CD/M2

IPS screen, the viewing angle is greater than 170 degrees

5)Support 4-channel 720P camera video recording at the same time

6)This OEM mobile data terminal supports DISPLAY PORT interface, can realize dual-screen different display

7)Support RTK high-precision centimeter-level positioning

8)Support 9-36V power input, support ISO7637 vehicle power supply standard

9)IP65 protection grade to meet the needs of complex and harsh working environment



T8Pro Specification


Appearance
IP ratingIP65
Screen and touchFull lamination process, multi-touch
8",1280*800, brightness>=500 CD/M2
IPS screen,The viewing angle is greater than 170 degrees

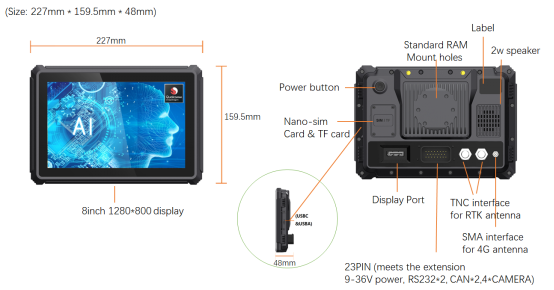

Size227mm*159.5mm*48mm
System
CPU64-bit 8-core processor, Qualcomm QCM6125,
Kryo260CPU+Adreno 610GPU, frequency 2.0Ghz
Memory4GB LPDDR4
Storage64GB EMMC
Operation systemAndroid 11/13
Wireless communication
WIFIDual-band WIFI, 2.4&5GHz, 802.11a/b/g/n/ac
BTBT5.1
GPSQualcomm built-in GNSS module
4G LTEFor Europe/India/Korea/South Asia/Latin America/Australia/South Africa
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900 MHz
High precision positioningsupport RTK module:
UNICORECOMM UM982 or U-BLOX F9p
Port
 PortPower button *1
USBC   * 1  (for software debugging)
USB Host A *1
TF Card *1
Nano SIM Card *1
TNC female antenna interface*2 (for GNSS antenna)
SMA female antenna interface*1 (for LTE antenna)
DP connector*1 (*for connecting DP display )
23PIN connector*1 (*for function extension )
Environment specification
Environment specificationPower :ISO7637
Vibration standard(working): MIL-STD-810
Impact standard(working): ISO16750
Humidity 95%, non-condensing
Working temperature: -20°C ~+70°C
