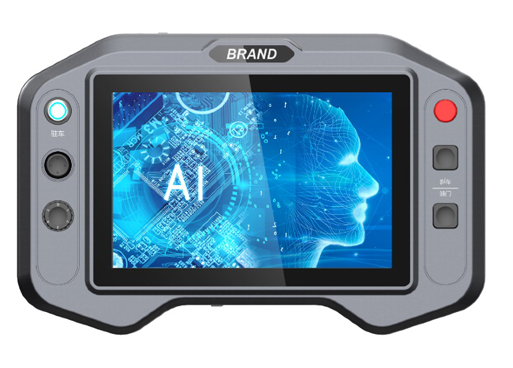

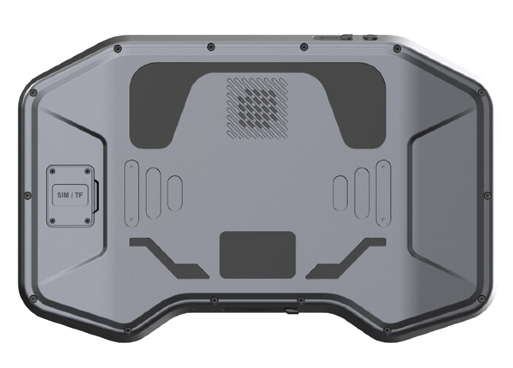

R10 industrial tablet computer is a 10.1-inch short-range remote control tablet for construction work vehicles. The industrial rugged tablet PC has 3 analog buttons and multiple digital buttons. Through WIFI or other wireless technologies, this china rugged tablet pc can realize short-range control of vehicles to operate as required and improve efficiency. (in development. . .)
R10 remote control rugged industrial tablet, you can control the vehicle remotely and accurately through the rugged mobile data terminal tablet
It is suitable for remote control operation of mining trucks, engineering operation vehicles, and logistics and warehousing vehicles
It can support customized high-precision operation and realize precise operation. For difficult operation environments, it can reduce the risk of manual operation and realize remote operation through remote control.
High-level protection IP67 to protect outdoor work protection, long battery life can effectively ensure outdoor work time during the tablet for industrial use
| Appearance | ||||
| IP rating | IP65 Waterproof | |||
| Display | 10.1", 1280*800， brightness>=500 CD/M2 Full-fit screen technology, multi-touch | |||
| System | ||||
| Processor | 64-bit processor, quad-core Cortex A53, frequency 1.5GHZ | |||
| Memory | 2GB (*up to 4GB) | |||
| Storage | 16GB (*up to 256GB) | |||
| OS | Android 10.0 (* or LINUX+QT) | |||
| Communication | ||||
| WIFI | 2.4G WiFi, IEEE802.11 b/g/n , support long-distance application | |||
| Bluetooth | BT2.1+EDR/3.0/4.0 BLE | |||
| GNSS | GPS+BD +GLONASS (*optional) | |||
| LTE | LTE module: Quectel EC200 (*optional LTE modules to support operators in different countries) LTE-FDD: B1/B3/B5/B8 LTE-TDD: B38/B39/B40/B41 GSM：900/1800MHz | |||
| Interfaces | ||||
| Interfaces | Powerbutton *1 USBC * 1 (for software debugging) USB Host A *1 TF Card *1 Nano SIMCard *1 | |||
| Environmental | ||||
| Environmental | IP Rating: IP65 Power: ISO7637-2 standard Operating Temperature: -20°C ～+70°C Relative Humidity: 10 to 90% at 40°C, non-condensing Shock&Vibration: MIL-STD-810 | |||
