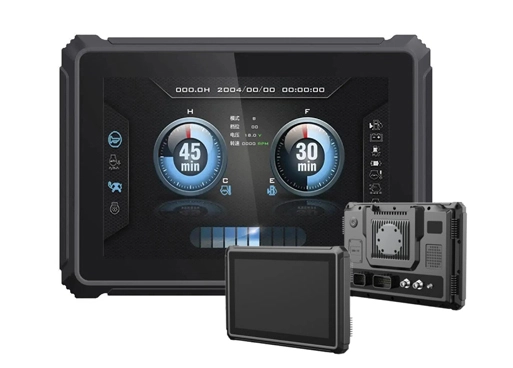

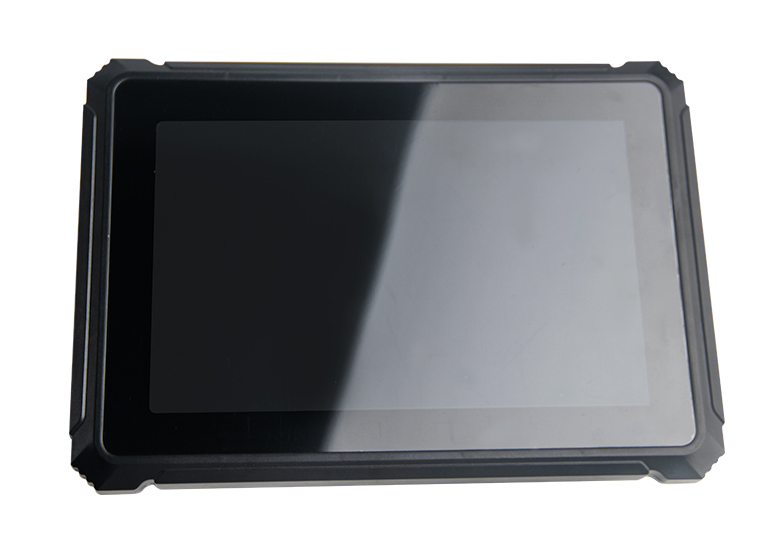

T10 (10.1 inch) Vehicle Mount Computer

T10 (10.1 inch) Vehicle Mount Computer

T10 is a vehicle mount computer that uses an AEC-Q100 car chipset, which is robust and reliable with an IP65 rating and can support high-precision automatic driving.

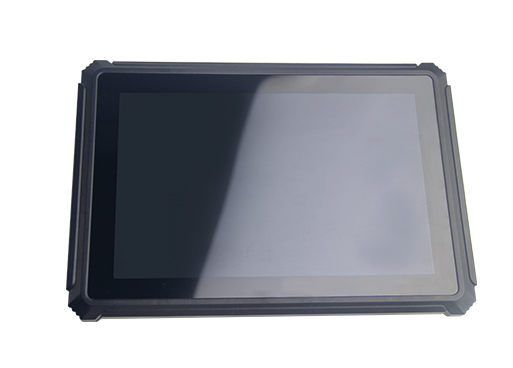

  • vehicle mount computer2

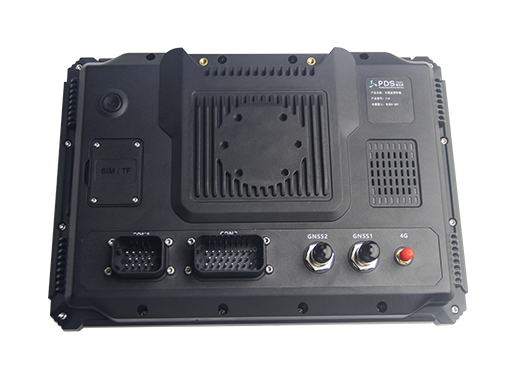

  • vehicle mount computer1

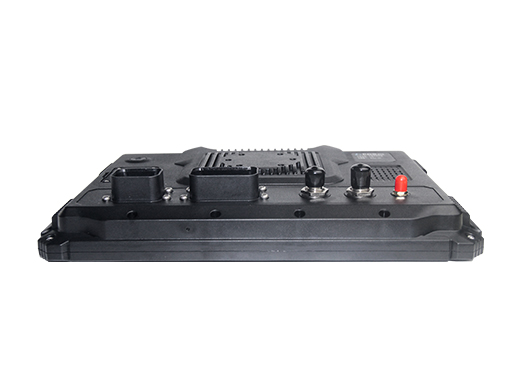

  • vehicle mount computer5
  • vehicle mount computer6

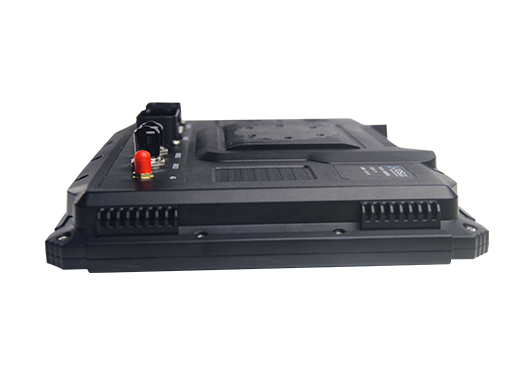

  • vehicle mount computer3

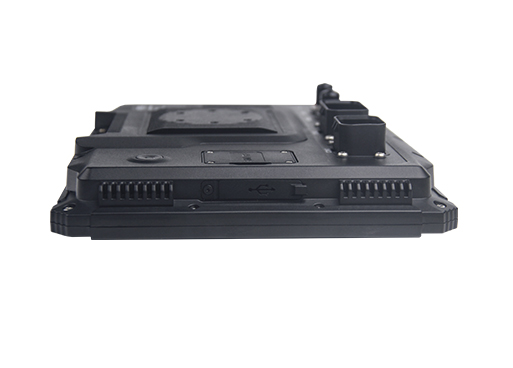

  • vehicle mount computer4
  • vehicle mount computer2
  • vehicle mount computer1
  • vehicle mount computer5
  • vehicle mount computer6
  • vehicle mount computer3
  • vehicle mount computer4

Video of T10 (10.1 inch) Vehicle Mount Computer



Characteristics of T10 (10.1 inch) Vehicle Mount Computer

  • 10.1-inch display and control terminal, Fleet management display and control terminal for trucks and vehicles

  • T10 vehicle mount touch computers can record the working status of construction machinery vehicles, and these data will ensure that the working efficiency of construction machinery vehicles is improved

  • This type of OEM mobile data terminal is widely used in tractor, construction vehicles, agriculture, driving training, fleets scheduling and other fields

  • Support Ethernet function and external public network vehicle intercom function Support 9-36V power input, support ISO7637 vehicle power supply standard;

  • IP65 protection grade Standard RAM bracket installation, suitable for horizontal or vertical installation



Specification of T10 (10.1 inch) Vehicle Mount Computer


Appearance

IP rating

IP65

Screen and touch

Full lamination process, multi-touch
10.1", 1280*800,  brightness>=500 CD/M2
IPS screen, The viewing angle is greater than 170 degrees

Size

275mm*200mm*47.5mm

System

CPU

Car chip 64-bit processor, 4-core Cortex A53@1.5GHZ

Memory

2GB (*optional 4GB)

Storage

16GB (*optional 256GB)

Operation system

Android 10.0 (* optional LINUX+QT)

Wireless communication

WIFI

2.4G WiFi, IEEE802.11 b/g/n

BT

BT4.0 BLE

GNSS

GPS+BD module(* optional)

4G LTE

Module: Quectel EC200U CAT1 (for European countries)
LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

GSM: B2/B3/B5/B8

High precision positioning

(*optional support RTK module UM482 or UB482 )

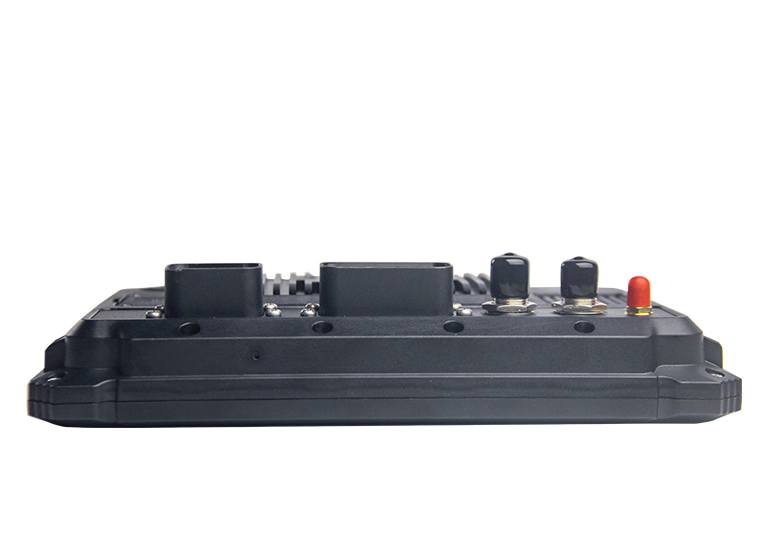

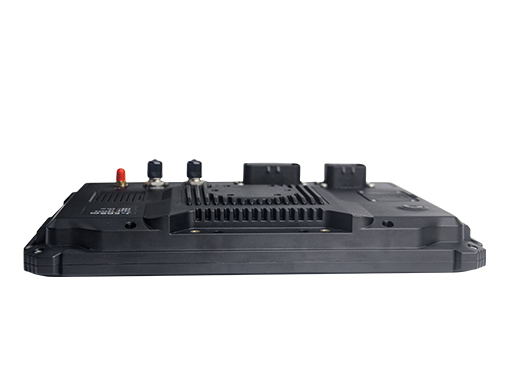

Port





Port

Power button *1

USBC port * 1  (for software debugging)

USB Host A port *1

TF Card *1

Nano SIMCard *1

TNC antenna port *2 (For external high-precision GNSS positioning antenna)

SMA antenna port*1 (For external LTE communication antenna)

14PIN connector*1 (*Function extension interface)

23PIN connector*1 (*Function extension interface)

*Function extension interface
(14PIN+23PIN)

Various function combinations are available(Using 14PIN+23PIN to meet the function requirement)

Default function: 4*CAMERA+2*CAN+2*RS232+1*100M Ethernet
Combo 1 function: 2*CAMERA+1*CAN+1*RS485+1*100M Ethernet +Hand microphone intercom

Combo 2 function: 1*CAN+3*RS232

Combo 3 function: 4*CAMERA+2*CAN+2*RS232+1*USB

Environment specification

Environment specification

Power: ISO7637

Vibration standard (working): MIL-STD-810

Impact standard (working): ISO16750

Humidity 95%, non-condensing

Working temperature: -20°C ~+70°C
