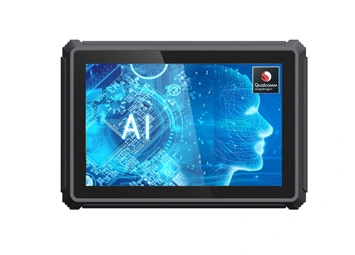

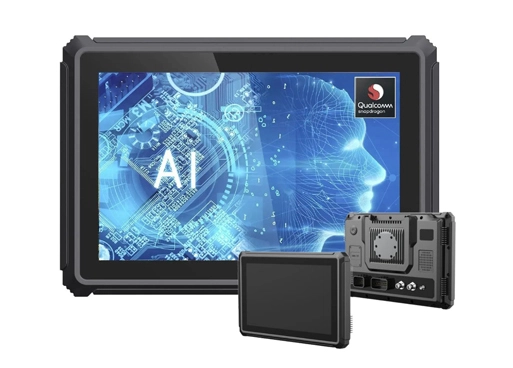

T10pro vehicle mount computer is a sturdy and durable vehicle-mount computer with high performance, which is suitable for various vehicles to work in complex and harsh environments.
T10pro uses the Qualcomm QCM6125 processor. It is an 8-core 64-bit processor with a maximum frequency of 2.0ghz, and has powerful CPU and GPU capabilities. T10pro vehicle mount touch computers can provide 4-channel CAMERA simultaneous video recording function to generate 4 video files.
T10Pro optional supports radio module ( Harxon 1022) and RTK module (UNICORE UM982). In the absence of 4G network covers, you can use the built -in radio module to receive RTK correction data, realize RTK's centimeter positioning and navigation to meet the autonomous driving application of agricultural machinery and engineering vehicles.
T10Pro's performance is much stronger than T10. If the software has strong performance requirements for CPU and GPU, T10Pro is a better choice.
1) Qualcomm high-performance 64-bit processor, QCM6125, up to 2.0Ghz
2) Support latest android system, ANDROID 13
3) Max to support 8GB+128GB memory
4) Full lamination process, multi-touch, 10.1", 1280*800, brightness>=750 CD/M2
IPS screen, the viewing angle is greater than 170 degrees
5) Support 4-channel 720P camera video recording at the same time
6) Support RTK high-precision centimeter-level positioning
7) Optional RADIO module for receiving RTK correction data
8) Support 9-36V power input, support ISO7637 vehicle power supply standard
9) IP66 protection grade to meet the needs of complex and harsh working environment
Appearance | |
IP rating | IP66 |
Screen and touch | 10.1"，1280*800， brightness>=750 CD/M2 Full-fit screen technology, multi-touch |
Size | 275mm*190mm*47.5mm |
System | |
CPU | 64-bit 8-core processor, Qualcomm QCM6125, Kryo260CPU+Adreno 610GPU, frequency 2.0Ghz |
Memory | 4GB LPDDR4 |
Storage | 64GB EMMC |
Operation system | Android 11/13 |
Wireless communication | |
WIFI | Dual-band WIFI, 2.4&5GHz, 802.11a/b/g/n/ac |
BT | BT5.1 |
GNSS (optional) | Qualcomm built-in GNSS module |
4G LTE | For Europe/India/Korea/South Asia/Latin America/Australia/South Africa |
Radio (optional) | Harxon 1022D, frequency 410-470MHZ ( used to receive RTK correction data) |
GNSS RTK Module (optional) | support RTK module: UNICORECOMM UM982 or U-BLOX F9p |
Port | |

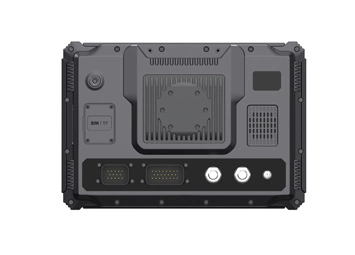

Port | Power button *1 USBC * 1 (for software debugging） USB Host A *1 TF Card *1 Nano SIM Card *1 TNC female antenna interface*2 （for GNSS antenna） SMA female antenna interface*1 （for LTE antenna) 23PIN connector*1 (*for function extension ） |
Environment specification | |
Environment specification | Power ：ISO7637 Vibration standard（working）: MIL-STD-810 Impact standard（working）: ISO16750 Humidity 95%, non-condensing Working temperature: -20°C ～+70°C |
